The right carport clearance height for 4WDs, roof racks and camper trailers on the Gold Coast is generally between 2.7 and 3.6 metres, depending on the vehicle and what’s strapped to the roof. The standard 2.4 metre carport you’ll see in most off-the-shelf kits is built for a basic sedan, not for the family 4WD with a rooftop tent on top or the camper trailer parked behind it. If you’ve already clipped a beam with the roof rack, or you’re sweating over whether the new caravan will even slide under cover, you’re not alone. Get the height wrong, and you’re either lopping the top off a kayak or paying twice to rebuild a carport that was never tall enough in the first place.
Why Carport Clearance Height Matters More Than Width Or Length
Most people obsess over width and length when they’re planning a new carport. Fair enough, you need to fit the vehicle in and open doors without slamming them into the post. But clearance height is where the real mistakes happen, and they’re the most expensive ones to fix later. You can usually live with a slightly narrower bay. You cannot live with a roof that won’t let your 4WD in at all.
The other reason height matters: vehicles change. The dual-cab ute you bought last year might have a flat tray now and a service body or canopy next year. Roof racks go up, rooftop tents get bolted on, and cargo boxes appear before a big trip. Building tall from the start protects you from every one of those future decisions.
Carport Clearance: What People Assume vs What Actually Happens
Minimum Carport Clearance Heights For Standard Cars Vs Larger Vehicles
The minimum clearance height for a standard car is around 2.1 to 2.4 metres. That works fine for a sedan, hatchback or small SUV. The trouble starts the moment you scale up to larger vehicles. A 4WD on its own is taller. Add roof racks, and you’re suddenly pushing well past what a wide carport built to standard height can handle.
Here’s a rough guide to what we see across Gold Coast driveways:
- Standard car (sedan, hatch, small SUV): 2.1 to 2.4 metres clearance height is fine.
- Mid-size SUV or dual-cab ute: 2.4 to 2.7 metres, more if you’ve got a canopy.
- 4WD with roof racks: 2.7 to 3.0 metres at the highest point.
- 4WD with rooftop tent or cargo box: 3.0 to 3.3 metres.
- Camper trailer or pop-top caravan: 3.0 to 3.3 metres.
- Full-height caravan, boat on trailer, or high-roof van: 3.3 to 3.6 metres or higher.
Measure your tallest setup, then add at least 200mm of breathing room. That extra space saves you from scraping every time you pull in.
Carport Clearance Needed By Vehicle Type
The heights below are the minimum we recommend, with a 200mm safety buffer baked in.
The jump from a sedan to a fully loaded 4WD is roughly a metre. That’s the gap most off-the-shelf carports miss.
How Tall Is A 4WD With Roof Racks Fitted

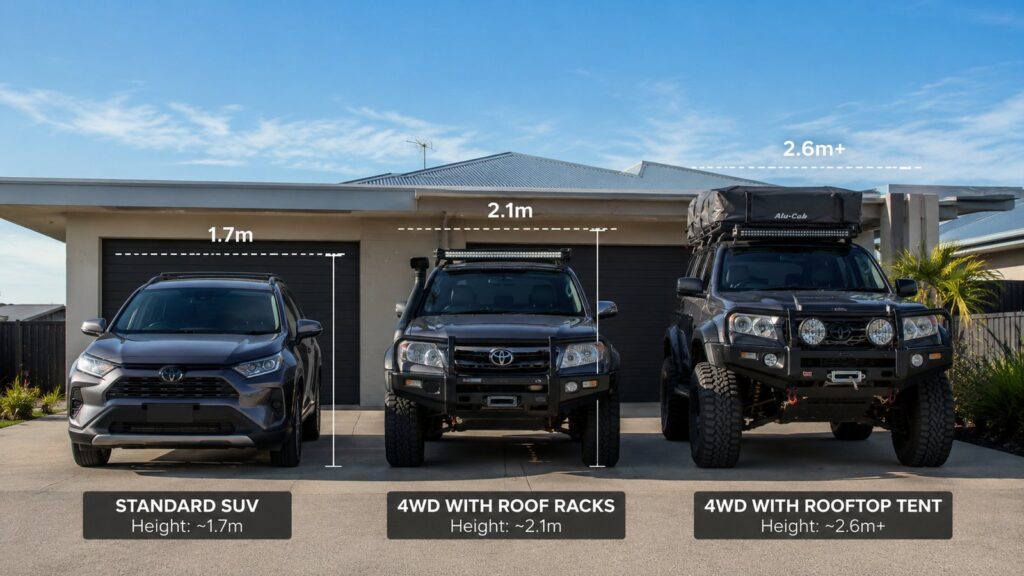

A bare 4WD like a Prado, Land Cruiser, or Patrol sits around 1.9 to 2.0 metres tall straight off the showroom floor. Fit a set of roof racks, and you’ve added another 80 to 150mm at the highest point. Pile a couple of jerry cans, an awning and recovery boards on top, and you’re looking at 2.4 to 2.6 metres before you’ve even thought about a tent.
A single vehicle clearance height of 2.4 metres, which is what most cheap kits ship with, won’t fit that. That’s exactly why so many homeowners ring us after the roof racks have already kissed the beam.
Allowing For Rooftop Tents, Kayaks, and Cargo Boxes
Rooftop tents are the silent carport killer. A closed hard-shell tent sits 250 to 350mm above the rack. A soft-shell tent folded down is similar. Once you factor that on top of the roof rack already sitting on the roof, your 4WD is now pushing 2.7 to 3.0 metres.
Kayaks and SUPs strapped flat add about 150 to 250mm. Cargo boxes are usually 350 to 450mm tall. None of these come off easily, so build them to be permanently up there.
Camper Trailer Heights And The Clearance You Really Need
Closed camper trailers usually sit between 1.6 and 2.0 metres tall. Sounds easy until you remember the tow vehicle is taller and you’ll often park the whole rig under cover as one unit. If you’re storing the camper trailer on its own, 2.4 metres is workable but tight. If you’re parking the 4WD and camper together, you need to design around the tallest part of the combination, which is almost always the rack-and-tent stack on the tow vehicle.
Caravans, Boats, and High-Roof Vans On The Gold Coast

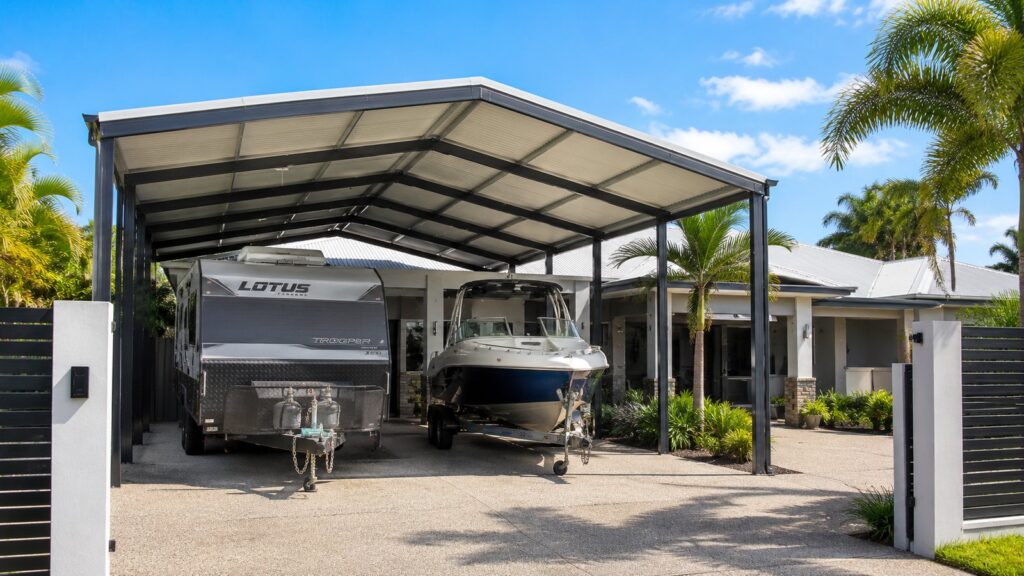

Caravans on the Gold Coast typically run 2.7 to 3.2 metres tall, more with rooftop air-cons, solar panels, or roof racks fitted. Most boats on trailers, once the bimini is up or the rocket launcher is fitted, sit somewhere between 2.8 and 3.4 metres. High-roof vans like the Sprinter or HiAce LWB sit around 2.6 to 2.9 metres.
If any of those live at your place, 3.0 metres is your starting point, and 3.3 to 3.6 metres is the safe call.
The Standard 2.4m Carport Trap and Why It Catches People Out
The standard 2.4 metre carport is everywhere because it’s cheap to mass-produce. Pre-engineered, off-the-shelf, certified, and ready to drop in. The problem is it was designed for a 1995 Camry, not for the 4WD-and-camper lifestyle that half the Gold Coast is living in 2026. People buy on price, the kit gets installed, and then the first time they pull in with the roof rack loaded up, the beam catches. By that point, it’s too late and far too expensive to raise the roof.
Off-The-Shelf Kit Carport vs Custom Built Carport: Where The Money Goes
Recommended Clearance Heights For 4WDs, Roof Racks, and Camper Trailers
If you want the short version:
- Measure the highest point of your tallest vehicle, fully loaded.
- Add 200mm minimum for clearance, 300mm if you regularly add or remove gear.
- Build to that figure, not the off-the-shelf default.
For most Gold Coast households running a 4WD with racks and a camper trailer, 3.0 metres is the sweet spot. If you’ve got a caravan or boat in the mix, push it to 3.3 or 3.6.
Before You Get A Quote: 60-Second Carport Clearance Audit
Grab a tape measure and tick anything that applies. If three or more boxes get ticked, you’re outside the 2.4m kit zone.
Three or more ticks? You need a custom build, not a 2.4m kit. We’ll measure on site and quote the exact height that fits you now and in 5 years.
How Gold Coast Council Rules Affect Your Maximum Carport Height
Gold Coast City Council has rules around maximum carport heights, setbacks from boundaries, and how close to the street you can build. The cap is usually generous enough for a 3.6 metre clearance carport, but you need to check with your local planning team or, easier, get a builder who handles the paperwork for you. Engineering certification and council approval are part of the job. They’re not optional. Done properly upfront, you avoid the nightmare of a structure that has to come down because it was built too tall against the setback rules.
Standards Your Gold Coast Carport Should Meet
If your builder can’t reference these, walk away.
Why Building Taller Now Beats Raising The Roof Later
Raising a carport roof after it’s built is brutal. You’re effectively pulling the structure apart, reseating posts, reordering steel, and rebuilding the roof. The cost is often 60 to 80 percent of building a new carport from scratch. Building the right height the first time costs maybe 10 to 15 percent more than a standard carport. That’s the difference between a smart investment and an expensive mistake.
Taller carports also give you better airflow underneath, more storage space above the vehicle for kayaks and boards on wall racks, and a long-term option to convert the space into a workshop or enclosed garage later.
Cost Impact: Build Tall Now vs Raise It Later
Roughly how each option compares to the price of a standard 2.4m carport.
Spending an extra 10 to 15 percent today saves you the cost of nearly a second build later.
How Patios Gold Coast Custom Builds Carports To Suit Your Vehicles
We build every carport around your actual vehicles, not a default kit. Our 3-step process is simple:
- Measure & Quote – We come out, measure your driveway, your vehicles, your roof racks and any future plans. You get a fixed written quote with no surprises.
- Design & Approval – We handle engineering, council paperwork and design choices like roof pitch, roof style (gable, skillion, flyover) and Colorbond colours to match your home.
- Build & Sign-Off – Most carports are built and signed off within a week of approval. Fully insured, QBCC licensed (15200654), with a real warranty backing it.
If your carport is already too low, or you’re about to buy a 4WD, boat, caravan or camper and want to do it right the first time, give us a bell on 0413 696 445 or grab a free quote. We’ve been building carports for Gold Coast families for over 20 years, and we know exactly what clearance you need.
High-Clearance Carports Across The Gold Coast: Suburbs We Cover
We build carport clearance solutions across the Gold Coast and northern NSW. If your suburb is not listed, give us a call. We almost certainly service it.
Get The Carport Clearance Right The First Time
Free on-site measure and fixed-price quote within 48 hours. We handle council, engineering and Colorbond colours so you don’t have to. No pushy sales, no hidden extras.
Carport Clearance: Common Questions
What is the best carport clearance height for a 4WD with roof racks?
For most 4WDs with roof racks fitted, we recommend a clearance height of 2.7 to 3.0 metres. If you’ve got a rooftop tent, cargo box or kayak permanently on the roof, push that to 3.0 to 3.3 metres. Always measure the highest loaded point and add a 200mm safety buffer.
What is the maximum carport height allowed on the Gold Coast?
Gold Coast City Council typically allows carports up to around 4.5 metres in overall structure height, depending on your block, setbacks and zoning. A 3.6 metre clearance carport sits comfortably within that. We confirm the exact rules for your address as part of the quoting process and lodge all the paperwork ourselves.
Can you raise the clearance of my existing carport?
Sometimes, but it usually costs 60 to 80 percent of a fresh build. You’re pulling posts out, reseating footings, reordering steel and rebuilding the roof. In most cases it’s better value to demolish and replace with the right clearance from the start. We’ll quote both options so you can compare.
How much extra does a higher carport clearance cost?
Going from a 2.4m to a 3.0m clearance generally adds 10 to 15 percent to the build cost. That covers longer posts, slightly heavier steel, and the engineering for the additional wind load. It’s a small premium compared to retrofitting later.
Will I need council approval for a tall carport on the Gold Coast?
Yes. Any carport that’s structurally fixed needs engineering certification and council building approval in Queensland. The taller the carport, the more important it is that wind loading and footing design are signed off properly. We handle the entire approval process for every carport we build.
Can one carport fit both my 4WD and my caravan?
Yes, this is one of the most common briefs we get on the Gold Coast. We design around the tallest item in the combination, usually the 4WD with rack and tent, then plan width and length to suit both vehicles side by side or in tandem. 3.0 to 3.3 metres clearance generally covers it.
What roof style works best for a high-clearance carport?
Flyover and skillion designs handle taller clearances neatly without looking out of proportion against the house. Gable roofs also work well when you want a more traditional Queenslander look. We’ll match the pitch, profile and Colorbond colour to your existing roofline so it blends in.
